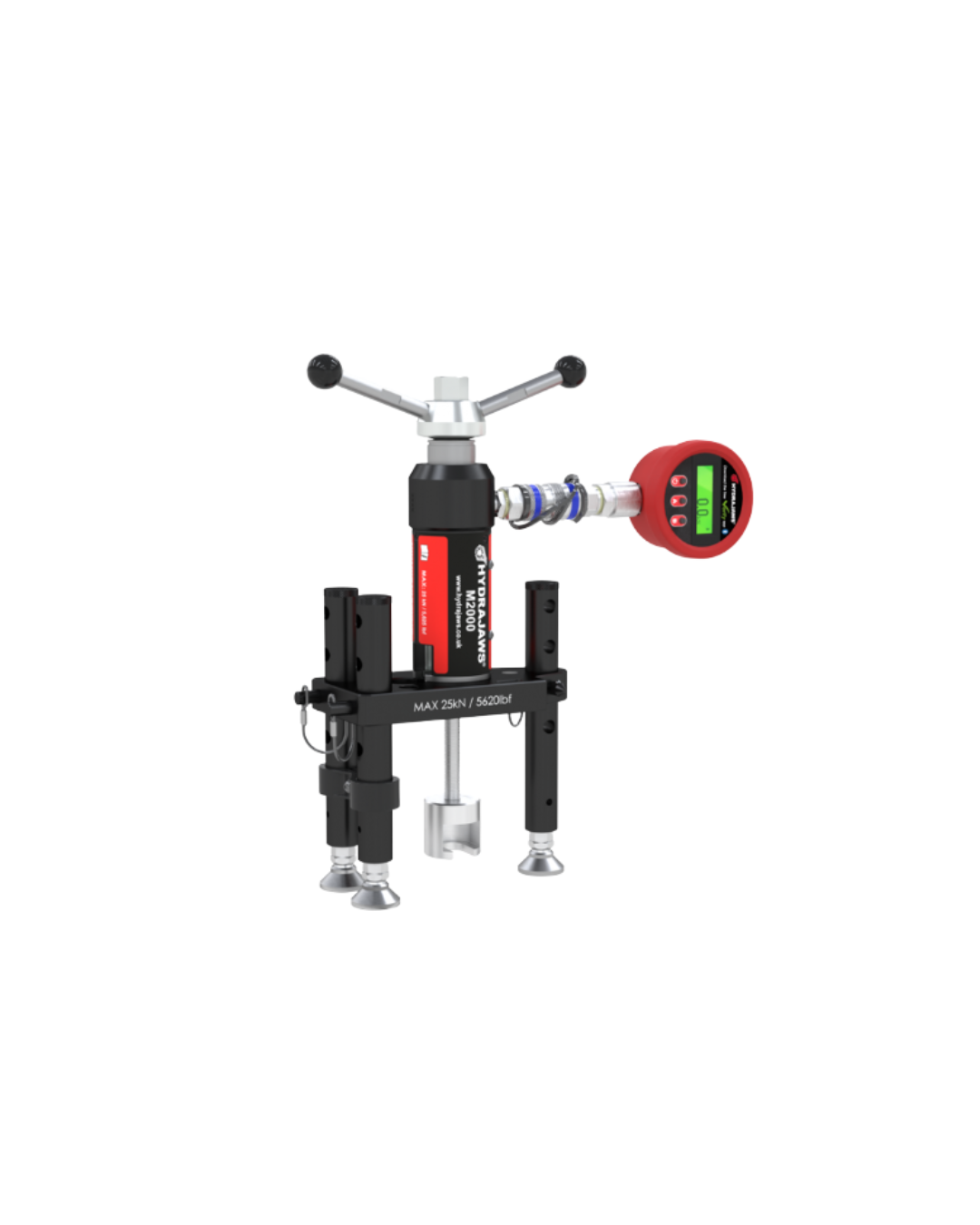

M2000 PRO Tester Kit

The M2000 tester enables engineers to confirm the installation process has been carried out in accordance with the anchor manufacturers instructions. The M2000 PRO Kit comprises all the necessary accessories to enable it to cover a pull test on a comprehensive range of fixings up to a maximum tensile load of 25kN.

M2000 Pro Kit Features

• 0-25kN Dual Scale rechargeable digital gauge (detachable for calibration, reduces carrier return costs)
• 2020 Load spreading bridge featuring height adjustable legs with pin arrangement in four positions with swivel feet giving 15mm of fine adjustment
• Turning Handle with 22mm (7/8″) integrated nut (for use in confined spaces)
• Hydrajaws gauge calibration certificate (valid for 12 months)
• The tester is preassembled and accessories can be quickly changed with ease
• Each kit comes in a robust carry case

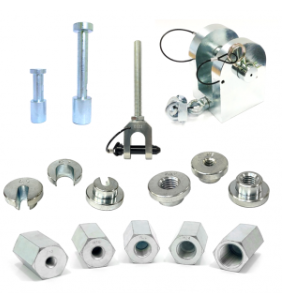

Kit includes the following adaptors:

• M12 Ringbolt Adaptor Clevis
• Bolt tester adaptor with M12 locking adaptor
• M16 & M20 Threaded stud adaptors
• Six slotted button adaptors (mm): 4.5, 5.5, 6.5, 8.5, 10.5, 12.5
• Six threaded button adaptors: M4, M5, M6, M8, M10, M12
